Product Details
Wintesting Compression Testing Machine - DYE-300B
₹90000
₹100000.00
10%
Sold By :Wintesting
Delivery duration : * 8 to 10 Days
In Stock
(24 items left)
Quantity:
Size : 300kN Price : 100000
Return Policy:
Thank you for purchasing our products/services. We value your trust and assure you of the best product/services at all times. As our customer, when you are buying our product or service, you agree to our refund policy. Once you have made a purchase on our platform. View details

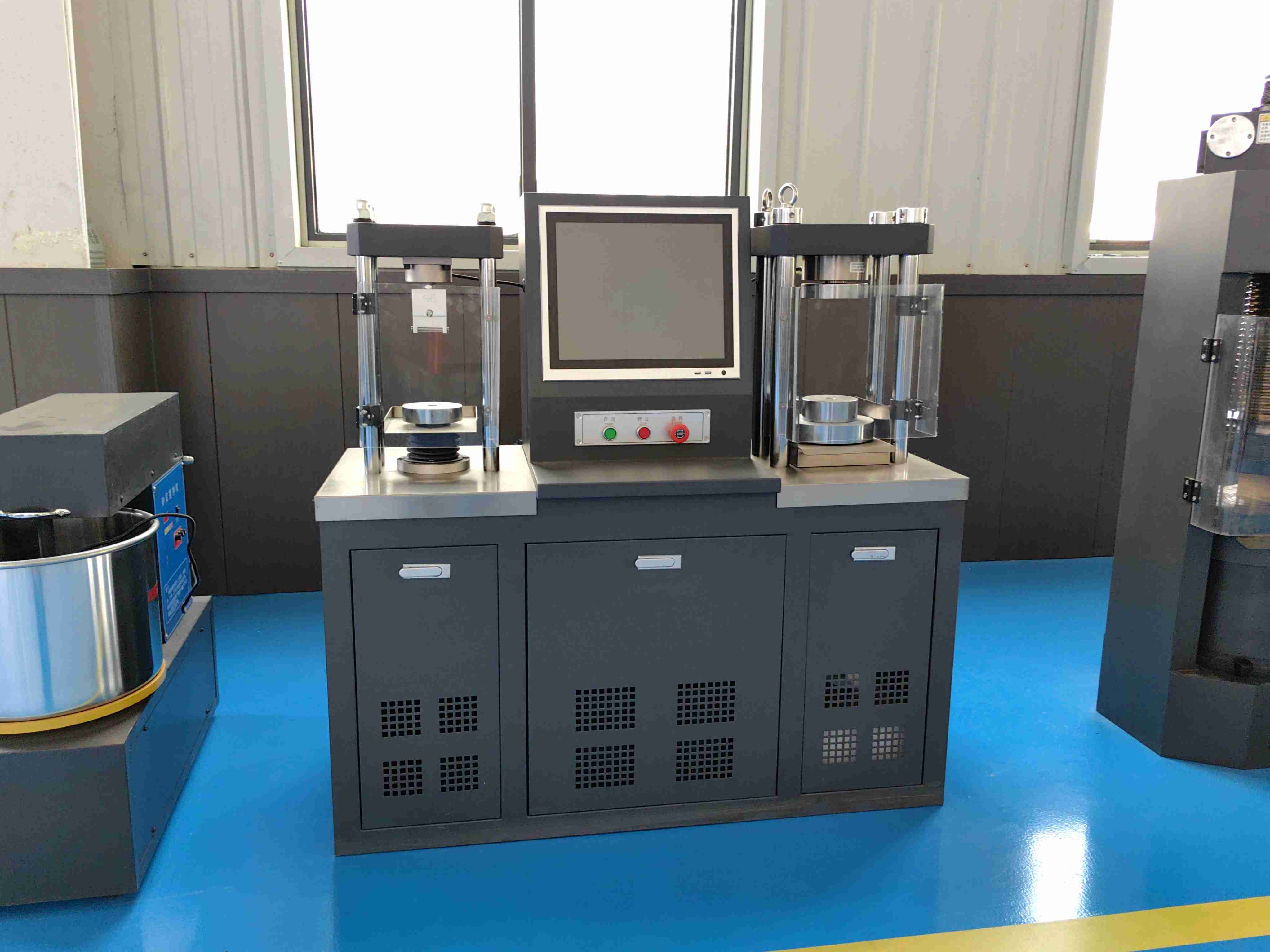

The micro-electro-hydraulic servo pressure testing machine is loaded in a hydraulic way, and uses electro-hydraulic servo control technology to test the mechanical properties of compressive and flexural properties of cement, mortar, brick, concrete and other building materials, and displays the loading force value, loading speed, loading curve.
Technical Details:-
- Code DYE - 300B
- Max Capacity - 300kN
- Accuracy class - Class 1
- Compression space - 180mm
- Piston stroke - 80mm
- Size of upper compression plates(mm) - Dia.170
- Size of lower compression plates(mm) - Dia.205
- Dimension(load frame mm) - 930 x 550 x 1400
- Power(kW) - 380V(220V optional), 50Hz(60Hz optional)
- Weight(kg) - 450kg
- Typically shipped in wooden crates or custom packaging
- Dimensions & weight vary based on model & capacity
- International shipping available, check with supplier for details
- Installation & training often provided by supplier
