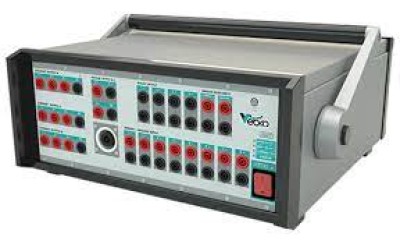

VEBKO AMT 105 Relay Tester with all Accessories and Transformer Testing Cable

Feature

Software Specifications

1. Capable of testing awide range of static, electromechanical and numerical relays

2. Capable of reading, editing, and creating all XRio and Rio files

3. Capable of transient testing

4. Capable of point-to-point or end-to-end testing 5. Built-in GPS and Wi-Fi

6. Automatically performing tests

7. Comprehensive report oftests

8. Capable of automatically filling out the test sheets of different companies

9. Compatible withWindows XP, 8, 10 10. Supporting Android and iOS apps

1. Autosave, Redo, and Undo options 12. PDF Help file in Farsi (English

version coming soon)

13. Using bootloader technology to update firmware

14. Ahost of instructional videos

Capable of Testing Circuit Breakers (CB) and Sectioners

.1 Testing the opening and closing time 2. Contact resistance measurement test 3. Minimum voltage to operate CB test

Capable of Testing VT/CVT

.1 Ratio &Polarity

2. Winding resistance

3. short circuit impedance 4. excitation

Capable of Testing Power Transformers

1. Winding resistance 2. Ratio (TTR)

3. No-Load current

4. Vector group

5. Magnetic balance

6. Tap changer continuity 7. Demagnetizing

8. Leakage reactance

Capable of Testing Current Transformers (CT)

.1 Excitation (Saturation)

2. Hysteresis curve

3. Ratio using current or voltage

.4 Polarity using current or voltage 5. Phase error

6. Winding resistance

.7 Secondary burden

Capable of Testing Transducers a n d Meters

1. Highly precise in testing transducers and meters

2. Equipped with a pulse counter to automatically read energy

Capable of Testing RTD

Capable of Testing Cable Resistance

USE

Key Features

6 powerful current sources for testing protective relays

High current amplitudefortesting 5Arelays H i g h accuracy and versatility for testing all

types ofstatic and numerical relays

v8 analog channels for measuring and recording

input signals in the transient state

Function

AMT Overcurrent Used to test Current functions like 51/50/67 etc.

AMT Distance Used To test the impedance functions.

V C C Used tosuccessively run the tests designed for a relay.

Current TransformerUsed ot test various classes of CT.

Circuit BreakerUsed to MV &HIV Circuit breakerstests.

AMT Sequencer Used to design tests that employ the Normal, Quick,Step Ramp,Continuous Ramp,Harmonic, Transient,..

A M T Differential Used to test the differential function.

(Transformer) Used ot perform different transformer tests.
