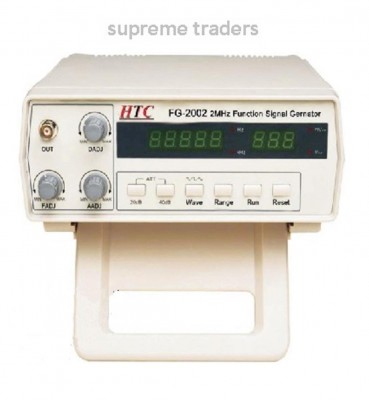

HTC-W1 FG-2002 2 MHz Function Generator 5 digit LED display (including 3 digits for voltage)
HTC-W1 FG-2002 2 MHz Function Generator 5 digit LED display (including 3 digits for voltage)

HTC-W1 FG-2002 2 MHz Function Generator 5 digit LED display (including 3 digits for voltage)

Sold By : HTC
  • Available
First select size for quantity
Size:
Price:
₹8,930 /Pc
Discount Price:
₹7,858 /Pc

12%
Payment:
  • visa card
  • master card
  • maestro card
Delivery duration
* 8 to 10 Days
Check

Return Policy:
Thank you for purchasing our products/services. We value your trust and assure you of the best product/services at all times. As our customer, when you are buying our product or service, you agree to our refund policy. Once you have made a purchase on our platform. View details
Payment:
  • visa card
  • master card
  • maestro card
Contact Person
Customer Support

+91-9168103909
Be A Seller
Apply Now

EXPERIENCE ZILLIONS BUYERS APP ON MOBILE

Technical Details:-

Product Specification

Frequency 2M Hz

Model Name/Number FG-2002

Voltage 220 V+/-10%(110 V+/-10%)

Dimension 310x230x90 mm

Brand HTC

Sensitivity 100 m Vrms

Attenuation 20 db,40 db

Serial HTC-W1

Brand HTC

Product Type Function Generator

Category Electronic Testing

SKU HTC13772FUHT140417

Model FG-2002

Display 5 digit LED Display Inch

Key Features 5 digit LED display ( including 3 digits for voltage) Frequency and amplitude display simultaneously Output waveforms: sine wave, square wave and triangle wave Frequency F output signal: 0.2Hz ~ 2MHz Duty cycle adjustable: 20% ~ 80% Width F output signal adjustable continuously Amplitude without attenuation: 0.9V ~ 10V Amplitude with -20dB attenuation/ 100mV ~ 1V Amplitude with -40dB attenuation: 10mV ~100mV Power : AC 110/220V

Warranty 6 Months

Features:-

requency 2M Hz

Model Name/Number FG-2002

Voltage 220 V+/-10%(110 V+/-10%)

Dimension 310x230x90 mm

Brand HTC

Sensitivity 100 m Vrms

Power - AC 110/220V

5 digit LED display (including 3 digits for voltage)

Frequency of output signal : 0.2Hz ~ 2MHz

Standard Accessories - Carrying case and manual

Dimension - 270(H) x 215(W) x 100(D)mm

Technical Specification:- 5 digit LED display ( including 3 digits for voltage) Frequency and amplitude display simultaneously Output waveforms: sine wave, square wave and triangle wave Frequency of output signal: 0.2Hz ~ 2MHz Duty cycle adjustable: 20% ~ 80% Width of output signal adjustable continuously Amplitude without attenuation: 0.9V ~ 10V Amplitude with -20dB attenuation; 100mV ~ 1V Amplitude with -40dB attenuation: 10mV ~100mV

Worrenty :- 6 Months
